Forged Reducing Inserts Manufacturer, Supplier & Exporter
Valtron Forge & Fittings is a leading manufacturer, supplier, stockist, and exporter of premium quality Forged Reducing Inserts in India. We offer a comprehensive range designed to meet international standards and the demanding requirements of industrial piping systems.

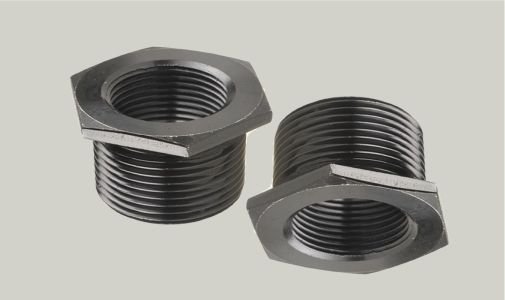

Our reducing inserts (bushings) adapt a larger fitting outlet to a smaller pipe size in one compact forged piece – the space-saving alternative to a reducing coupling.
A Reducing Insert / Bushing has a male connection on the outside and a smaller female connection on the inside, manufactured to ASME B16.11 / BS 3799. It screws or welds into an existing outlet to step the connection down one or more sizes.
Key Features
Steps a larger outlet down to a smaller pipe size in one piece
More compact and economical than a reducing coupling
Socket Weld (SW) and Threaded (SCRD) patterns
Pressure classes 3000#, 6000# and 9000#
Forged construction for superior strength and durability
Available in all grades of stainless, carbon, alloy and nickel alloys
Sizes from 1/8” NB to 4” NB
Material Used in Manufacturing
- We manufacture Forged Fittings in a wide range of materials depending on service conditions and project specifications:
- Stainless Steel (ASTM A182 F304/304L, F316/316L, F321, F347)
- Carbon Steel (ASTM A105)
- Alloy Steel (ASTM A182 F1, F5, F9, F11, F22, F91)
- Low Temperature Carbon Steel (ASTM A350 LF2 / LF3)
- Duplex & Super Duplex Stainless Steel (ASTM A182 F51 / F53 / F55)
- Nickel Based Alloys (ASTM B564 – Monel, Inconel, Incoloy, Hastelloy)
- All materials comply with standards issued by ASTM International and ASME.
Applications
- Forged fittings are ideal for:
- High-pressure small-bore piping systems
- Oil & Gas exploration and processing facilities
- Power generation and boiler feed lines
- Chemical, petrochemical and fertilizer plants
- Hydraulic and steam distribution systems
- Marine and offshore piping networks
Standards and Specification
| Parameter | Specification |
|---|---|
| Product | Forged Reducing Inserts |
| Manufacturing Standards | ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97, BS 3799 |
| Material Standards | ASTM A105, ASTM A182, ASTM A350, ASTM B564 |
| International Codes | ASME, ASTM International |
| Pressure Classes | 2000#, 3000#, 6000#, 9000# |
| Size Range | 1/8” NB to 4” NB |
| End Connections | Socket Weld (SW) & Threaded (SCRD) |
| Inspection & Testing | PMI Testing, Hardness Test, Impact Test, Hydrostatic Test, Dimensional Inspection, Visual Inspection |
| Certification | Mill Test Certificate (EN 10204 3.1 / 3.2), Third-Party Inspection (TPI) |
Why Choose Valtron Forge & Fittings?
- Forged construction delivering superior grain structure and mechanical strength.
- Rated for high-pressure classes up to 9000# for demanding services.
- High-performance materials for durability and corrosion resistance.
- Rigorous quality control including hydrostatic and dimensional testing.
- Complete range of forged fittings under one roof with international certification.
- Forged Reducing Inserts from Valtron Forge & Fittings provide reliable performance, mechanical strength, and compliance with international standards, making them suitable for demanding industrial and process piping systems.
